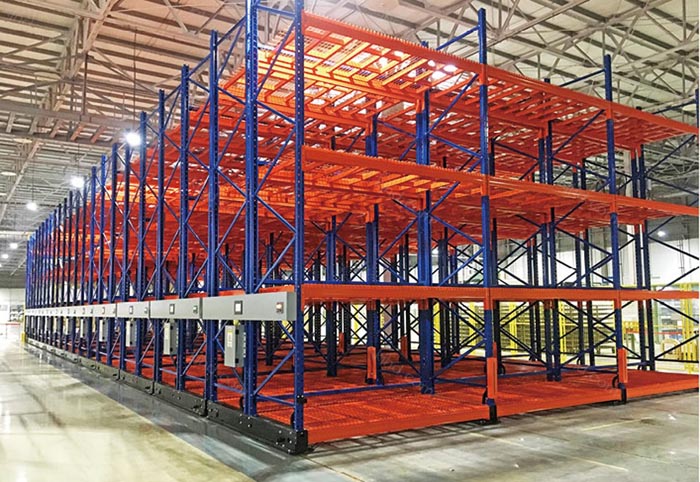

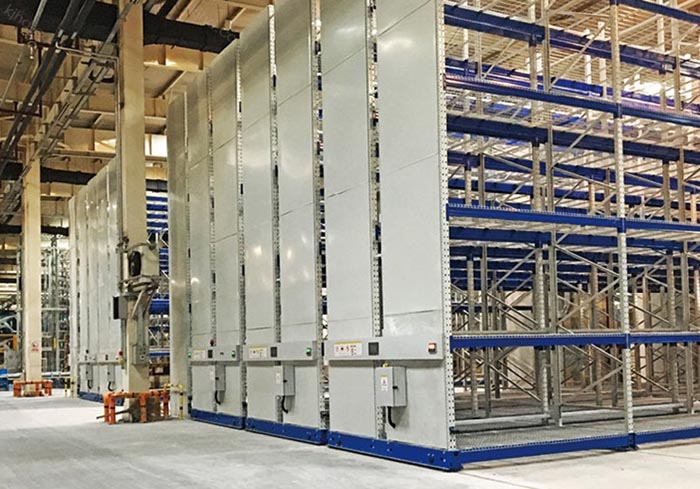

智能電動移動貨架系統，是專業的高密度智能倉儲系統，是集上位機WMS倉庫管理軟件、進口PLC、變頻器、傳感器、7英寸觸摸屏、安卓智能移動終端采集器、RFID、條碼技術系統智能存儲功能為一體的現代化倉儲管理系統，該系統僅需要一條通道，空間利用率極高。適用于冷鏈物流、食品、醫療、汽車廠零部件倉庫等各行各業單位面積造價較貴之倉庫，如冷庫貨架、防爆倉庫貨架等。通過電機驅動承載臺車，臺車上放置托盤式貨架，懸臂貨架等，變頻調速，貨架從啟動到制動都實現自動化、智能化、安全可靠。根據導軌形式分為有軌式和無軌式兩種結構。
Shuttle racking is composed of upright, link pole, arm beam, adjustable foot, arm, pallet guide board, galvanized pallet support rail, protector, and forklift positioning plate. The arm beam connects the upright and the pallet support rail to form an integral unit, and horizontal bar can be configured, so that the precision of the racking can be guaranteed while the overall stability can be effectively enhanced. The adjustable feet of the upright frame are high strength bolts, which can not only ensure the installation precision of the guide rail in horizontal direction but also effectively mitigate the impact caused by uneven subsidence of floor. Pallets are placed on the upper surface of the guide rail and intelligent shuttle runs on the lower part of the guide rail. Wide opening design is used for the upper part of the guide rail, so that the intelligent shuttle can be conveniently placed into the guide rail.
電動移動式貨架的特點

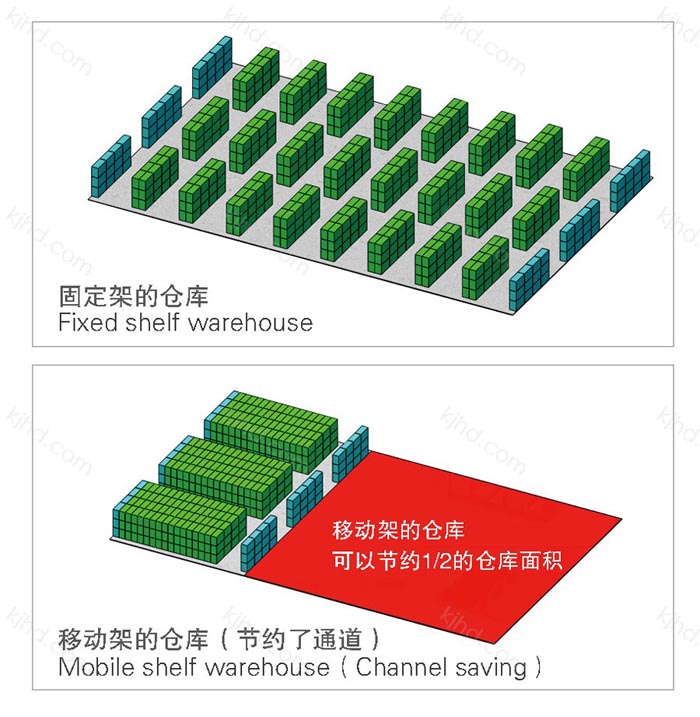

1、節省空間
在同一區域里，電動移動式貨架只需要一個取貨通道，與普通貨架相比，能節省一半的空間。
2、提高工作效率
因為只有一個取貨通道，所以不必在不同通道間來回穿梭，叉車、作業者所需要行走距離得以縮短，大大提高了工作效率；
Characteristics of electric mobile racking
1. Save space
In the same area, the electric mobile racking only needs one goods pickup channel, so its footprint is 50% smaller than common racking.
2. Improve working efficiency
As there is only one goods pickup channel, the forklifts and operators do not need to come and go in different channels, and their travelling distance is shortened, greatly improving working efficiency.

3、結構簡單、施工方便
與普通固定貨架相比，只是增加了底部的移動臺車，而該臺車的結構也很簡單，沒有繁雜的零部件，操作和維護都簡單方便。

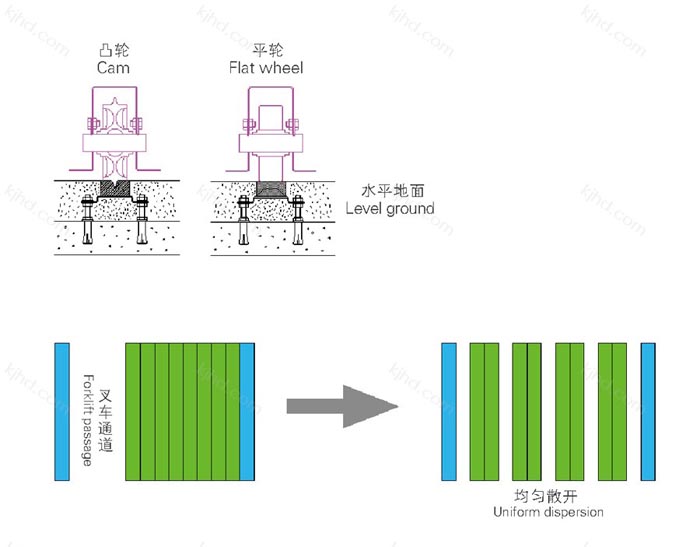

軌道方式承重大，每間口最重可以承重32T，使用專門軌道，與地面平齊，保持地面的平整性。無軌道方式的施工作業更簡單、方便，不需要破壞現有地面。
3. Simple structure and convenient construction
Compared with common fixed racking, this racking only has an additional mobile carrier at the bottom. Besides, the carrier also has simple structure and no complex parts, so it can be operated and maintained easily and conveniently.
In the case of the track type, the system has a high load bearing capacity up to 32T per unit. It uses special rail embedded at the ground level, so the flatness of the floor can be kept.In the case of the trackless type, the construction is even easier and more convenient, and will not damage the existing ground.

4、抗震性、穩定性好
不進行作業的移動列是可以并靠在一起的，擴大了放置面，提高了整體的抗震性和穩定性。由于靠在一起，貨架上的貨物也不容易滑落。
4. Good shock resistance and stability
The non-working mobile rows can be put side by side to expand the placement area and enhance the overall shock resistance and stability. In this way, the goods on the racking are not prone to falling.
5、操作簡單
全觸屏操作，簡單明了
1）主臺車控制面板    2）副臺車控制面板   3）通風
在液晶觸屏上，點下“通風”按鈕，所有移動貨架等間距排開
以方便各通道同時進行盤點作業，也方便冷庫的冷氣循環均勻。
5. Simple operation
Simple and clear touch screen operation
1) Main carrier control panel  2) Auxiliary carrier control panel 3) Ventilation
If the “Ventilation” button on the LCD touch screen is pressed, all the mobile racking will be arranged in equal spacing, so that inventory can be made conveniently for each channel and cold air can circulate evenly in the case of cold storage.
